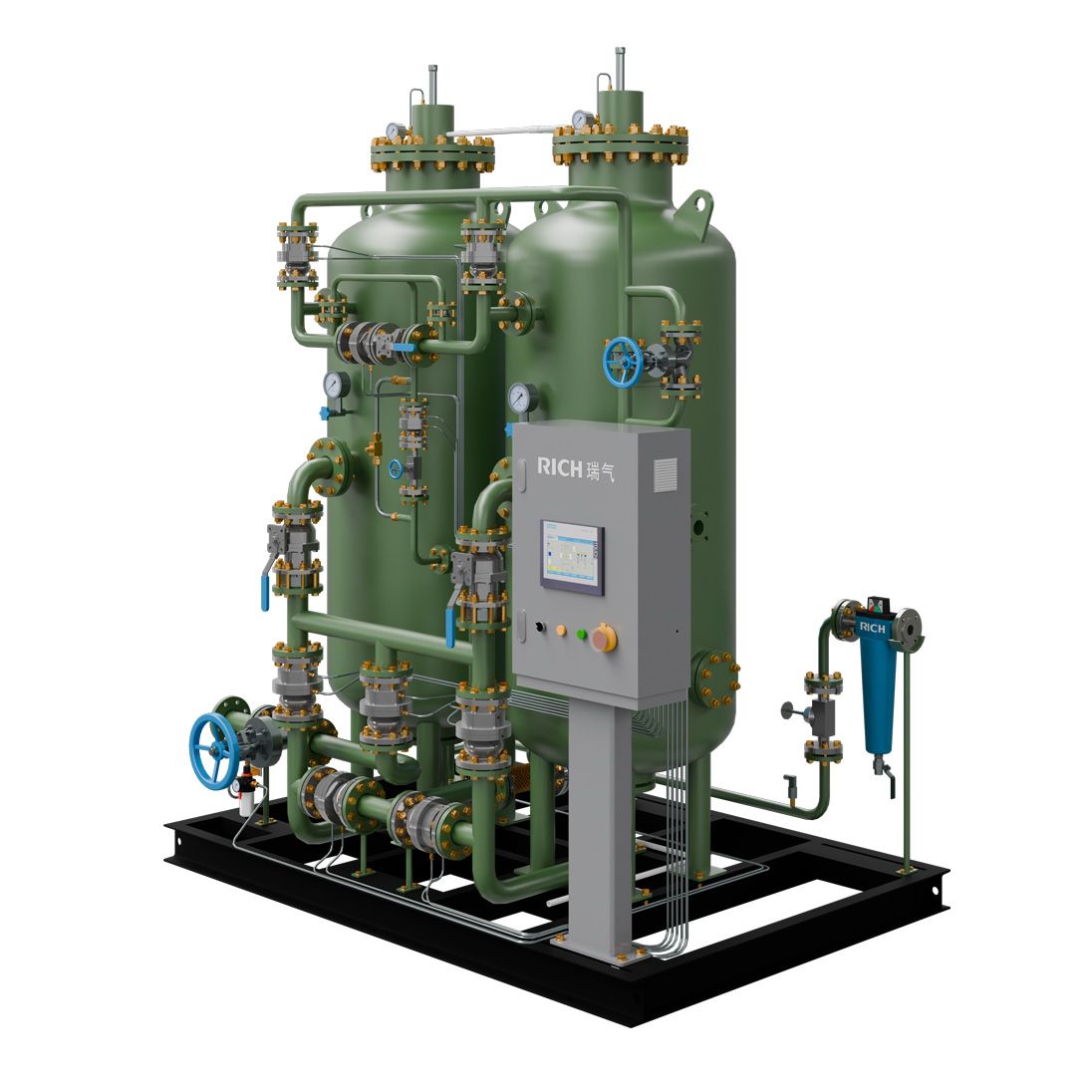

PNF Series PSA nitrogen generator, Assemble Your Own Nitrogen Generation System.
We not only offer plug-and-play complete on-site nitrogen generation systems, but also support you to use your existed components to complete your own nitrogen generator, by following our guides when selecting the following parts.
Widely used in petrochemical, optical fiber, coal mining, automobile, battery/lithium battery, rubber/tire, pharmaceutical industry, electronics/semiconductor, metal processing, food/beverage and other industries.
Low Running Costs
Potential for Expansion
On-Site Gas Production
Flexible Budget
Ensured Stability
Matured Technology
Real-Time Gas Status
| Nitrogen flow | 5~2000Nm³/h |
| Nitrogen purity | 97%~99.99% |
| Dew point | ≤-10℃ |
| Nitrogen pressure | 0.7~1.0MPa |
If you choose to purchase the components except the PSA generator and oil eliminator, you will need to follow our recommendations to select the following components to complete your on-site nitrogen generation system.
The tubing between the kits can also be purchased by users themselves by following our instructions.
PNF series pressure swing adsorption nitrogen generator is divided into 4 optional models, and the structure description is shown below.

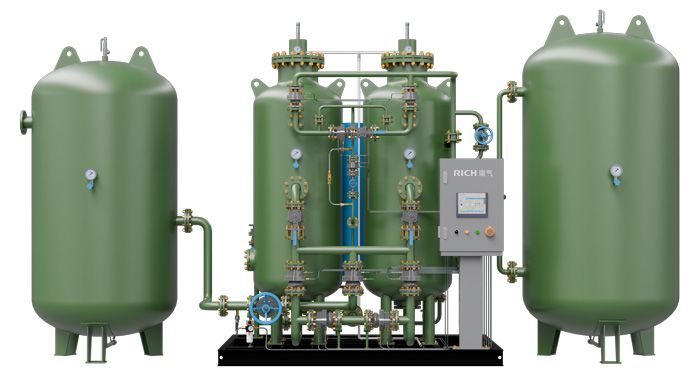

Air Buffer Tank
Nitrogen Buffer Tank

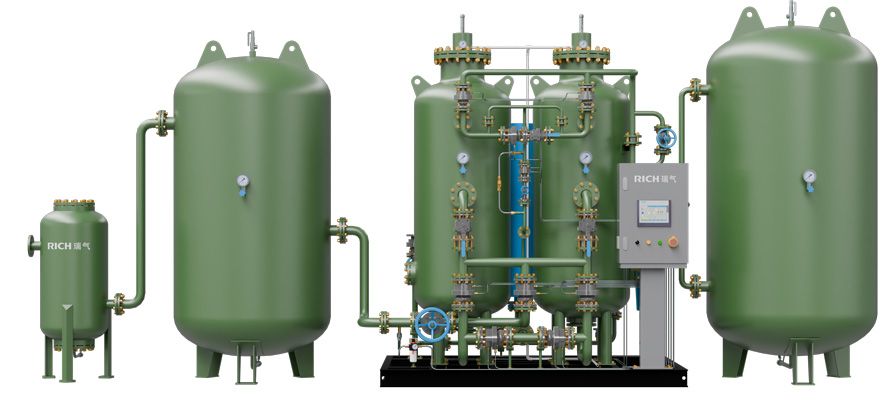

Air Buffer Tank
Nitrogen Buffer Tank
Oil Eliminator

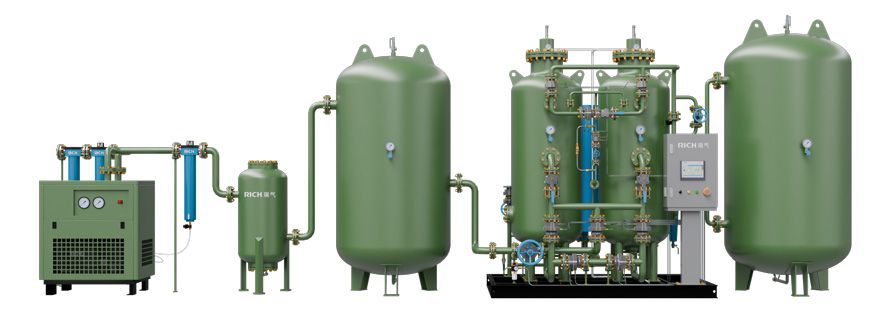

Air Buffer Tank
Nitrogen Buffer Tank
Oil Eliminator

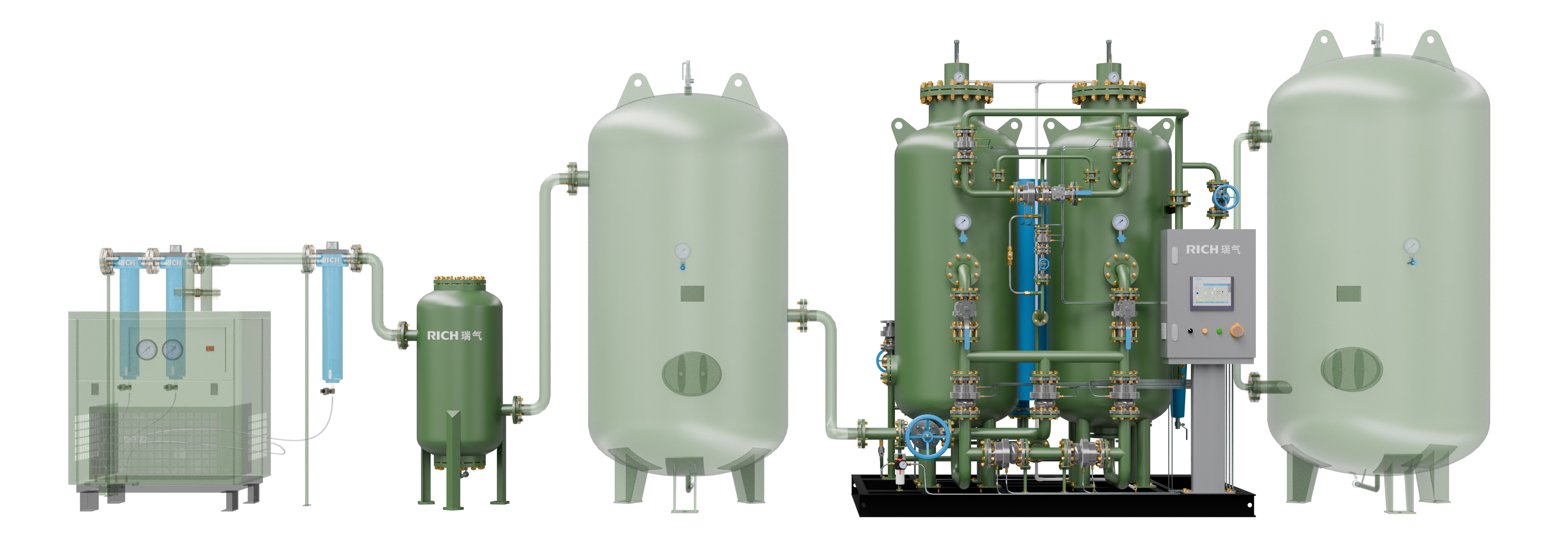

Compressed Air Purification
1. The pressure drop of the degreaser is 0.02MPa, and the pressure drop of the PNF nitrogen generator is 0.1MPa.
2. "N" in the selection table refers to the state of measurement standard 20°C and 101.325kPa (absolute pressure); Nitrogen purity refers to the anaerobic content; Pressure refers to gauge pressure.
3. The nitrogen flow in the selection table refers to the maximum nitrogen output when the PNF PSA nitrogen generator is discharged to the air under the design conditions. Air consumption refers to the amount of compressed air consumed by the PNF pressure swing adsorption nitrogen generator when it reaches the nitrogen flow rate in the selection sheet.
4. The maximum working pressure of “PNF” PSA nitrogen generator is 1.0MPa, and when the nitrogen purity is < 99.5%, the dew point of nitrogen under atmospheric pressure is ≤-40°C. When the purity of nitrogen ≥ 99.5%, the dew point of nitrogen atmospheric pressure ≤-50 °C.
