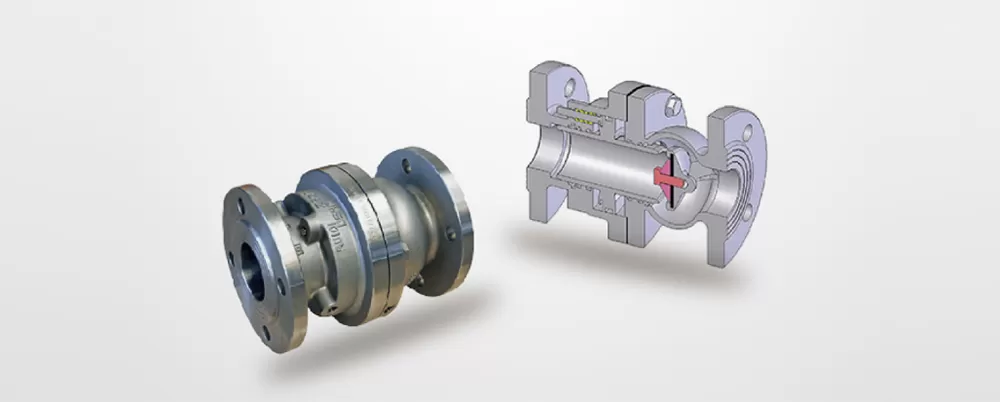

Pipeline pneumatic valve is mainly used for on-off switching of medium in the control system. Pipeline pneumatic valves are widely used in the control of gas and liquids in petroleum, chemical, metallurgy, papermaking, food and other industries, and are especially suitable for frequent and rapid switching occasions.
1. The actuator and valve are integrated.
2. Compact structure and small size.
3. The forward and reverse flow pressure are balanced, no limit to the flow direction.
4. Indicators for the switch.
5. Fast switching.
6. Soft seal, nearly no leakage.
7. Can be equipped with solenoid valves, limit switches and other accessories.
| Nominal pressure | 1.0MPa, 1.6MPa, 2.5MPa |
| Control signals | 0.3-0.5MPa (compressed air) |
| Applicable temperature | -20-250℃ |
| Diameter(mm) | DN10-DN200 |
| Material | 1Cr18Ni9Ti |
Can be operated more than one million times without failure
